TrojanUVFlex

The latest in wastewater UV disinfection

Non-potable Reuse & Treatment of Tertiary Effluent

The TrojanUVFlex® is ideal for non-potable reuse and other wastewater applications where the treatment of filtered tertiary effluent is required. It is designed with features to make installation and operation simpler, faster and more cost-effective than ever before. Built on the TrojanUV Solo Lamp® Technology platform, TrojanUVFlex allows for energy-efficient high-intensity delivery of UV light in an extremely compact footprint.

Applications

  • Non-potable Reuse
  • Tertiary Effluent Disinfection

TrojanUVFlex Logo

Key Features and Benefits

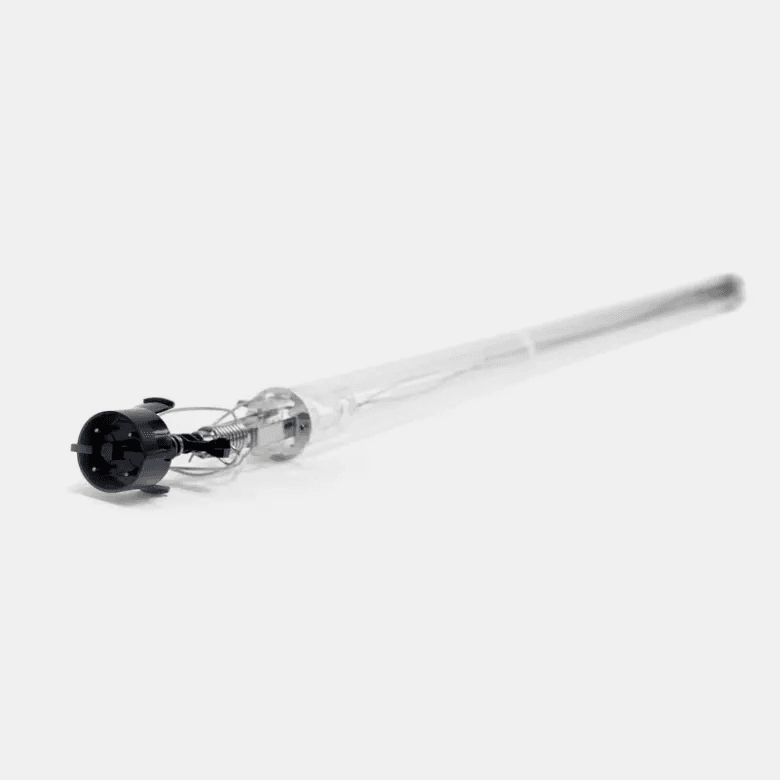

TrojanUV Solo Lamp

Cost-saving Cross-flow Lamp Orientation

TrojanUV Solo Lamps are arranged in array’s perpendicular to flow. This cross-flow orientation reduces operating costs by allowing independently operated sections of lamps to be turned on/off in response to changing treatment conditions and also ensures water continues to be treated by downstream lamps in the event an upstream lamp needs to be replaced.

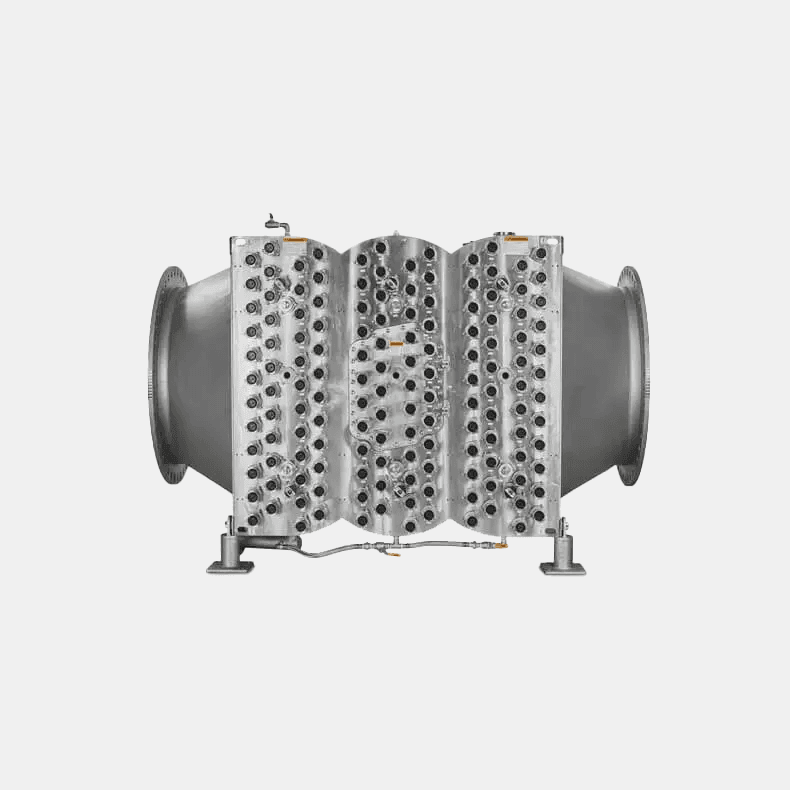

Modular Chamber With Flexible Installation Options

Chambers can be manufactured with additional banks to accommodate future treatment capacity, ensuring the system meets your current requirements while also planning for future needs. The option to install chambers vertically or horizontally makes integration into existing piping straightforward and allows service access from any direction.

TrojanUVFlex 200 Series chamber

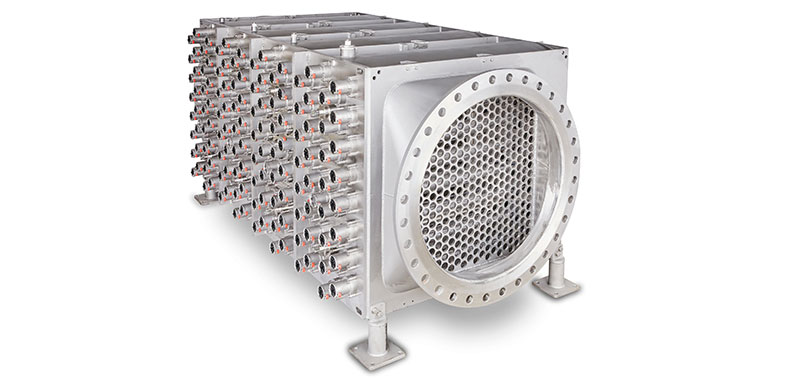

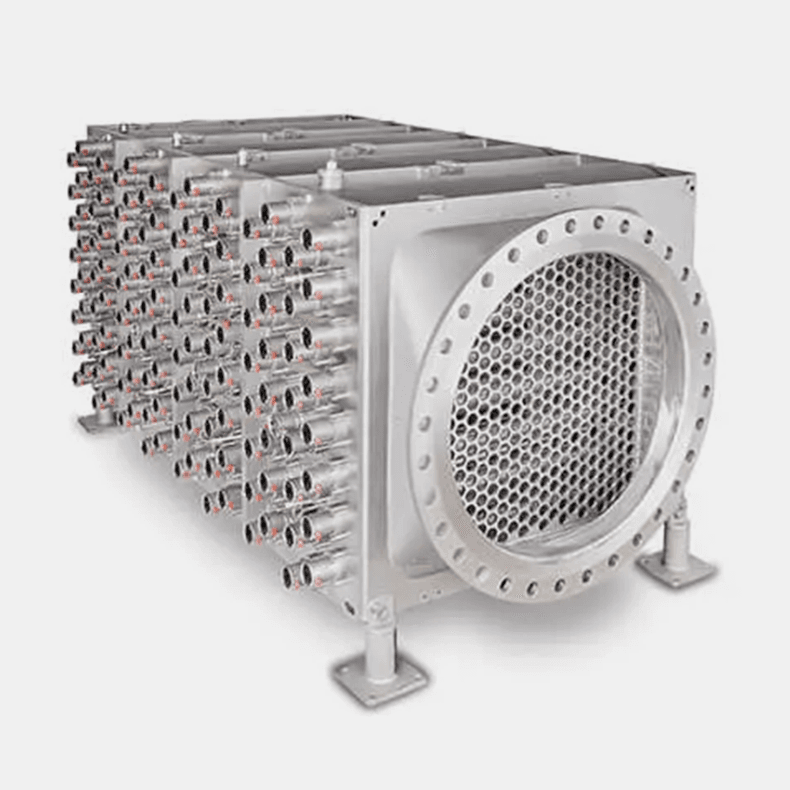

TrojanUVFlex 100 Series chamber

Advanced Validation

Chambers are validated in accordance with the National Water Research Institute (NWRI) and United States Environmental Protection Agency’s Ultraviolet Disinfection Guidance Manual (UVDGM). The TrojanUVFlex has been validated using water with as low as 45% UV transmittance (UVT).

User-Friendly Experience

The TrojanUVFlex has been designed with features to make the operator’s daily work simpler and faster. Lamps, connections, sensors and quartz sleeves are all accessed from outside the chamber.  Integrated chamber hatches allow for easy internal access for inspection or maintenance. A smart, easy-to-use control system automatically optimizes energy use while ensuring UV dose and treatment objectives are being met.

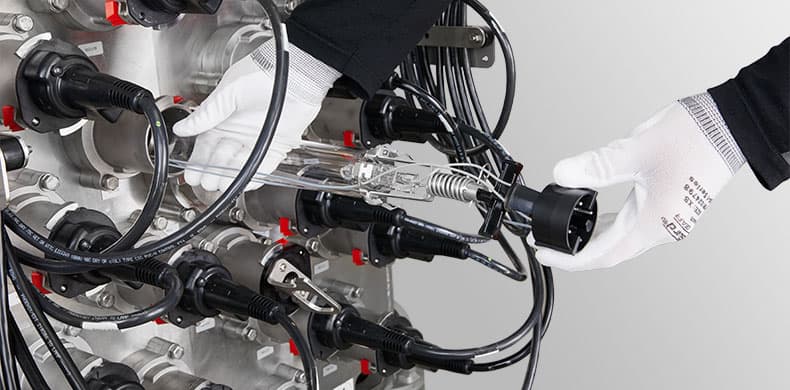

TrojanUVFlex lamp replacement

System Specifications

System Characteristics

TrojanUVFlex 200 Series

TrojanUVFlex 100 Series

Lamp Type

TrojanUV Solo Lamp (low-pressure high-output)

Lamp Power

1000 Watts

500 Watts

Lamp Driver

Electronic, variable power (30% to 100%)

Chamber Material

2205 duplex stainless steel

Flange Size

48 inch AWWA C207, DN1200

36 inch AWWA C207, DN900

Pressure Rating

Up to 150 psi (PN10)

Sleeve Cleaning

Mechanical cleaning (Optional)

Network Connection

AB Ethernet I/P, ProfiNet, Profibus, Modbus TCP/IP, Modbus RTU RS485

Panel Material

Painted mild steel, 304 stainless steel, 316 stainless steel

Validation

USEPA and NWRI
