TrojanUVSpring® is designed for small municipalities to treat their drinking water efficiently and reliably. With a simplified design and compact footprint, installation can be streamlined to get a newly commissioned site up quickly or an existing site back online easier. Available in three size configurations, each size ensures there is a suitable solution for your installation’s flow rate to utilize ultra-violet (UV) technology to help meet your treatment goals.
TrojanUVSpring inactivates Escherichia coli (E.coli), fecal coliform, and even chlorine-resistant microorganisms like Cryptosporidium & Giardia.
Developed using advanced Computational Fluid Dynamic (CFD) modeling, and incorporating high output amalgam lamps, the TrojanUVSpring is extremely space efficient with a cost-saving design. Its compact footprint allows the system to be integrated into restrictive pipe galleries of water treatment facilities and can even be installed immediately after a 90º elbow and other upstream piping configurations, when approved by local regulators.
Energy-efficient, high-intensity amalgam lamps minimizes the lamps, seals, and maintenance to meet UV dose delivery requirements and reduces annual maintenance costs for lamp change-outs.
Have questions? Call us at 1 (888) 220-6118 or complete the form below.
Select models can be equipped with a highly-effective automated sleeve wiping system to minimize the frequency and costs of cleaning, while ensuring consistent dose delivery. It operates online while the lamps are operating, thus reducing downtime and it can also be programmed to wipe lamp sleeves at pre-set intervals. The TrojanUVSpring was designed for easy maintenance, with an operator-friendly design and an externally mounted sensor for easy access.

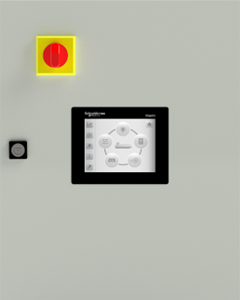

The intuitive system provides at-a-glance system status and allows remote operation with real-time system status information for on/off control and alarm code differentiation for fast identification of changes in system status. It features a robust, microprocessor-based controller on select models which combines extensive functionality with an operator-friendly, digital interface and can be mounted up to ten meters from the chamber.
Our comprehensive network of certified service providers offers ongoing maintenance programs and fast response for service and spare parts. All TrojanUV systems include a Lifetime Performance Guarantee and comprehensive warranties for systems and parts.
General | Spring S1 | Spring S2 | Spring X2 | |
Max DVGW - W294 Validated Flow gpm (m3/hr) | 12.8 m3/hr | 31.8 m3/hr | 76.1 m3/hr | |
| UV Transmittance Range: | 70 - 98% | |||
UV Lamps | ||||
Number of Lamps | 1 | 2 | 2 | |
Input Power per Lamp & Lamp Type | 200 W input | 440 W input | ||
Service Life: | 16,000 Hrs | |||
Control Power Panel (CPP) | ||||
| Voltages | 230V Single phase, 2 wire + gnd, | ✓ | ✓ | ✓ |
Lamp Driver Power Level | 100% constant | Variable 50% dimming | ||
Control Power Panel Rating | IP54 | |||
HMI | LCD | 4" Colour Touchscreen | ||
Network Interface | Digital Output | Modbus | ||
Digital Input | Remote on/off | |||
Digital Output | General alarm | General alarm System status | ||
Analog Input (4-20mA) | N/A | Panel temp sensor UVT meter Flow meter | ||
Analog Output (4-20mA) | Irradiance Chamber temperature | Irradiance Chamber temperature | ||
