UV treatment + taste and odor treatment for drinking water

Multi-barrier Protection

The TrojanUVSwift®ECT has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate microorganisms Cryptosporidium, Giardia, and Adenovirus.


    TrojanUVSwiftECT Logo

    Key Features and Benefits

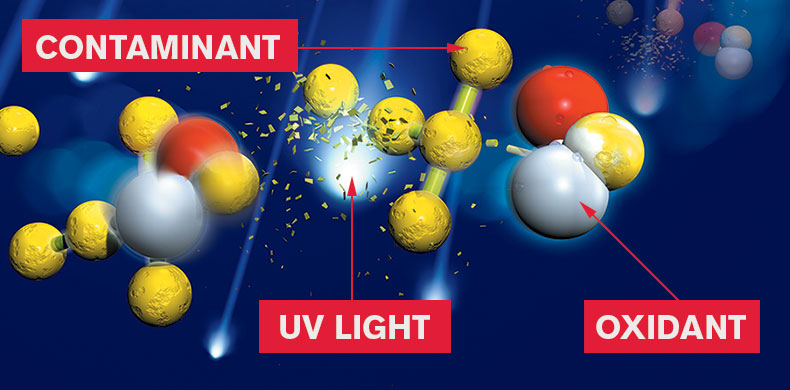

    UV AOP Eliminates Residuals

    Seasonal Taste & Odor Treatment Mode

    When taste and odor events occur, additional UV lamps or chambers are energized and hydrogen peroxide is dosed into the water upstream of the UV system. This initiates a powerful oxidation reaction that breaks down MIB and Geosmin.

    Optimized Dose Delivery

    Sophisticated, patented control system optimizes the UV advanced oxidation process by controlling the dosing of hydrogen peroxide, lamp power and on/off status in real time. This minimizes operational costs while maintaining optimized UV energy distribution and hydrogen peroxide dosing.

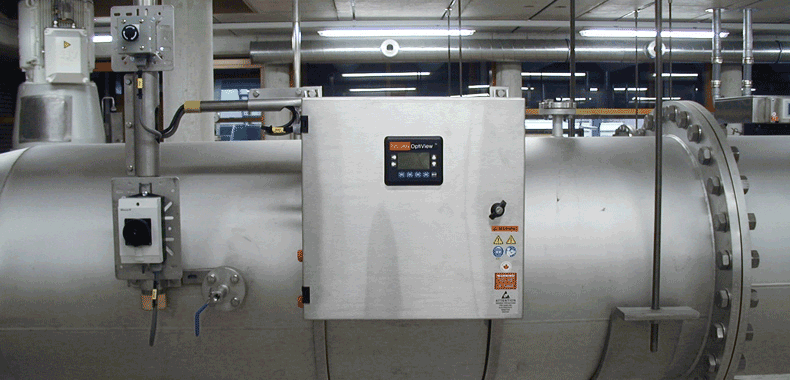

    TrojanUVSwiftECT installation with OptiView UV transmittance measurement

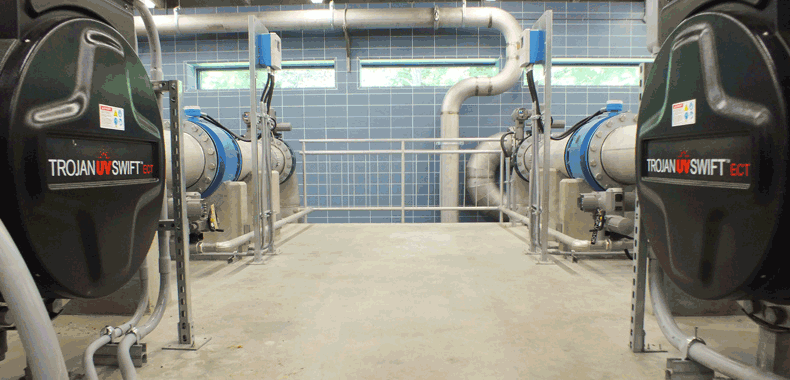

    TrojanUVSwiftECT installation at a drinking water plant in Ontario

    Treatment-only Mode

    For times when seasonal taste & odor treatment is not necessary, the system’s high intensity, medium-pressure UV lamps operate at lower energy levels that have been validated through microbial testing.  Through this testing, performance data has been generated for UV dose delivery to inactivate microorganisms Cryptosporidium and Giardia.

    Compact, Hydraulically Efficient Chamber

    Hydraulically efficient, flow-through design – developed through advanced Computational Fluid Dynamics modeling – minimizes head loss and pumping requirements. Full serviceability from one side of the chamber allows installation in restrictive pipe galleries and against walls.

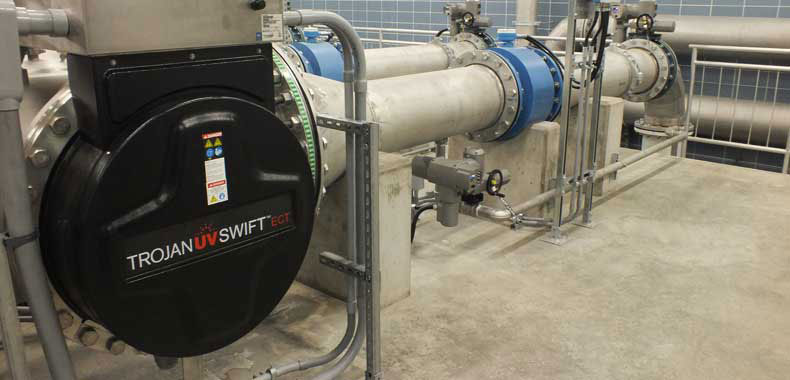

    TrojanUVSwiftECT installation at a drinking water plant in Ontario

    ActiClean sleeve cleaning system

    Automatic, Dual-action Lamp Sleeve Cleaning

    The optional dual-action ActiClean® sleeve cleaning system uses a combination of mechanical wiping and an NSF 60-certified gel to provide unparalleled sleeve cleaning. Quartz sleeves and intensity sensors are cleaned automatically, without disrupting treatment.

    System Specifications

    Model

    L24

    L30

    Number of Lamps

    8

    8,16

    Dimensions/Miscellaneous

    Approximate Dimensions



    Width (in/m)

    54/1.4

    62/1.6

    Length (Flange to Flange) (in/m)

    35/0.9

    53/1.35

    Overall Height (in/m)

    38/1.0

    49/1.25

    Required for Service beyond End Cap (in/m)

    24/ 0.6

    48/1.2

    Vertical Distance Required for Service (in/m)

    88/2.2

    88/2.2

    Maximum Operating Pressure (PSI/kPa)

    150/1,034

    75/517 or 150/1,034

    Dry Chamber | Wet Chamber Weight (lb/kg)

    1,500/680 | 2,240/1,016

    2,178/990 | 4,050/1,837 (75 PSI model)

    Electrical/Control Power Panel

    Electrical Supply

    480 V, 3 Ph + GND, 60Hz; (400 V, 380 V, or 415 V), 3Ph + GND, 50 Hz

    Maximum Power Supply Range

    8 lamp - 83 kVA unbalanced

    8 lamp - 103 kVA unbalanced

    16 lamp - 202 kVA unbalanced

    Nominal kW Input per Lamp

    9.6

    12.3

    Panel Rating

    Type 12 Indoor

    Enclosure Dimensions (HxWxD)

    86.75" x 94" x 23.5" | 2.2 m x 2.4 m x 0.6 m (4 cabinets per chamber [16L30])

    Replacement Parts

    TrojanUV 820392, UV Lamp
    820392
    Price: Contact Us
    TrojanUV 820776, UV Lamp
    820776
    Price: Contact Us
    TrojanUV 820432, Natural Quartz Sleeve
    820432
    Price: Contact Us
    TrojanUV 820772, Synthetic Quartz Sleeve
    820772
    Price: Contact Us
    Trojan 913262, TrojanUV Lamp Driver
    913262
    Price: Contact Us
    820087, Natural Quartz Sleeve
    820087
    Price: Contact Us
    820856, Lamp
    820856
    Price: Contact Us
    915109, Lamp Driver
    915109
    Price: Contact Us
    TrojanUV 820777, UV Lamp
    820777
    Price: Contact Us
    TrojanUV 820195, Natural Quartz Sleeve
    820195
    Price: Contact Us
    TrojanUV 820820-876, Synthetic Quartz Sleeve
    820820-876
    Price: Contact Us
    TrojanUV 820821-558, Synthetic Quartz Sleeve
    820821-558
    Price: Contact Us
