TrojanUVSwiftSC installation at a drinking water treatment plant in Ontario, Canada

TrojanUVSwiftSC

Proven, validated drinking water UV treatment for small communities

Drinking Water Confidence for Small Communities

The TrojanUVSwift®SC is designed to treat flow rates of 20 gallons per minute (GPM) to 16 million gallons per day (MGD) or 4.5 to 2,525 m3/hr. These compact UV systems offer communities an economical solution for drinking water treatment.

The TrojanUVSwift®SC has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to disinfect pathogens Cryptosporidium, Giardia, and Adenovirus.


    TrojanUVSwiftSC Logo

    Key Features and Benefits

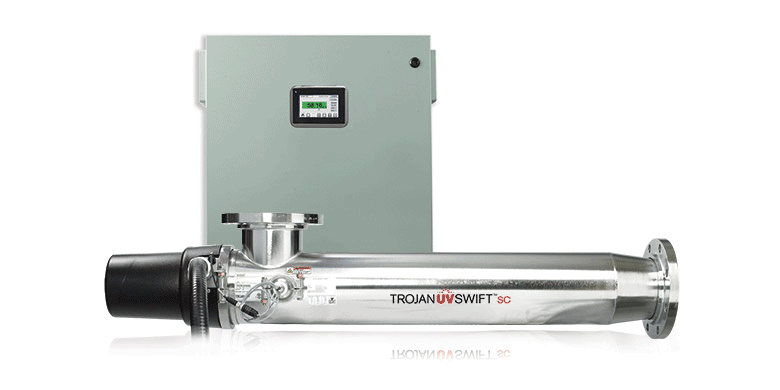

    A photo of a TrojanUVSwiftSC chamber and control panel

    Installation Flexibility

    The compact chamber can be installed vertically or horizontally, and its low head loss design simplifies integration into existing processes while minimizing the need for additional pumps. Lamps and sleeves are serviceable from one side, allowing the system to be installed tight to walls, equipment, or in restrictive pipe galleries.

    Energy-efficient Lamp Technology

    High-efficiency electronic lamp drivers ensure cost-effective operation. D-Series chambers can be equipped with optional dose pacing that adjusts lamp output to match dose to actual performance requirements – minimizing operating costs and extending lamp life.

    A photo of an amalgam UV lamp with red ends that is used in the TrojanUVSwiftSC drinking water disinfection system

    A photo of an operator removing a UV lamp from a TrojanUVSwiftSC chamber

    Simplified Maintenance

    Routine maintenance procedures, including lamp change-outs and sensor calibration checks, are simple and require minimal time. Plus, the optional automatic wiping system minimizes quartz sleeve fouling and operates without disrupting operation.

    Intuitive Controls

    A microprocessor-based controller combines extensive functionality with an operator-friendly digital interface. Operators get at-a-glance, real-time system status information, and programmable digital and analog I/O capabilities allow remote on/off control and alarm code differentiation for fast identification of changes in system status.

    A photo of the control panel used to control and operate the TrojanUVSwiftSC drinking water disinfection system

    System Specifications

    Model #

    A02

    B03

    B04

    B06

    B08

    D03

    D06

    D12

    D18

    D30

    Validated Dose Range



    DVGW (mJ/cm2)

    40

    EPA (mJ/cm2)

    N/A

    186

    100

    UVT Range

    Nominal Range of 80% to 98%

    70% to 98%

    Water Temperature

    1°C to 40°C (34°F to 104°F)

    UV Chamber

    Number of Lamps

    2

    3

    4

    6

    8

    3

    6

    12

    18

    30

    Chamber Material

    Type 316L Stainless Steel

    Mounting Feet (Brackets)

    Optional

    Standard

    Max Operating Pressure PSI (BAR)
    *Additional Pressures Available

    150 (10)

    Chamber Weight (Dry) lbs (kg)

    34 (15)

    72 (33)

    75 (34)

    81 (37)

    85 (39)

    115 (52)

    275 (125)

    430 (195)

    665 (301)

    1,200 (545)

    Chamber Weight (Wet) lbs (kg)

    65 (29)

    149 (68)

    150 (68)

    160 (73)

    162 (85)

    230 (104)

    530 (240)

    860 (390)

    1400 (635)

    2,250 (1,150)

    Wiping System Available

    Manual

    Manual/Automatic

    Automatic

    Control Panel

    Lamp Driver Power Level

    Electronic Constant Output (100%)

    Electronic Variable Output (60% - 100%)

    Electrical - Voltages

    120 V 230 V (Europe)

    208 or 240 V, single phase, 2 wire + gnd, 50/60 Hz L-L

    Control Panel Rating

    Type 12 (IP54), Type 3R (IP24)

    Type 12 (IP54), Type 3R (IP24), Type 4X (IP66)

    Material

    Painted Mild Steel (Type 12) SS304 (1.4301 in Europe) (Type 3R & Type 4X)

    Inputs/Outputs

    5 Analog In, 2 Discrete In, 4 Analog Out, 7 Discrete Out

    Instrumentation

    UV Sensors Per Chamber (DVGW/EPA)
    1 per 10 lamps as per DVGW
    1 per chamber as per EPA

    1

    1

    1

    2/1

    2/1

    3/1

    Dimensions – Inches (cm)

    without auto wiper   A:

    33 (84)

    47 (119)

    47 (119)

    47 (119)

    47 (119)

    68 (173)

    66 (170)

    68 (173)

    68 (173)

    70 (178)

    B:

    30 (75)

    43 (109)

    43 (109)

    43 (109)

    43 (109)

    62 (157)

    60 (152)

    59 (150)

    56 (142)

    56 (142)

    Flange Size   C:

    3 (80DN)

    4 (100DN)

    4 (100DN)

    6 (150DN)

    6 (150DN)

    6 (150DN)

    8 (200DN)

    12 (300DN)

    16 (400DN)

    20 (500DN)

    D:

    6 (15)

    8 (20)

    8 (20)

    8 (20)

    8 (20)

    8 (20)

    11 (27)

    14 (35)

    17 (42)

    21 (53)

    E:

    6 (15)

    7 (18)

    7 (18)

    7 (18)

    7 (18)

    7 (18)

    9 (23)

    12 (30)

    15 (38)

    18 (45)

    F:

    50 (127)

    60 (152)

    60 (152)

    60 (152)

    60 (152)

    70 (178)

    70 (178)

    70 (178)

    70 (178)

    70 (178)


    Replacement Parts

    794447-0RD Lamp
    794447-0RD
    Price: Contact Us
    793024, Quartz Sleeve
    793024
    Price: Contact Us
    793075, Quartz Sleeve
    793075
    Price: Contact Us
    792934, Quartz Sleeve
    792934
    Price: Contact Us
    794113, UV Lamp
    794113
    Price: Contact Us
    917067, Lamp Driver
    917067
    Price: Contact Us
    TrojanUV 794447G, UV Lamp
    794447G
    Price: Contact Us
    TrojanUV 794447-0GN, UV Lamp
    794447-0GN
    Price: Contact Us
    793010, UV Lamp
    793010
    Price: Contact Us
