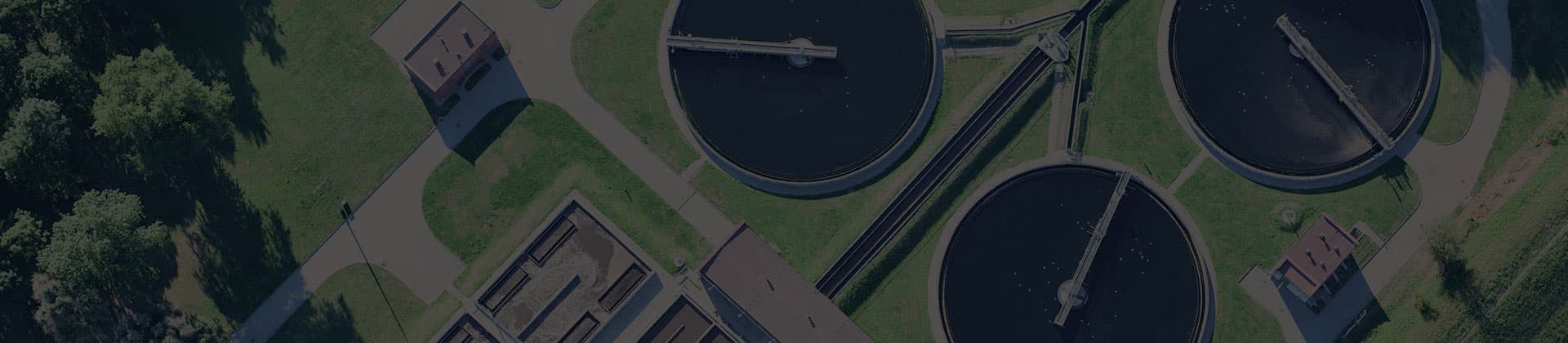

Aerial view of a wastewater treatment plant

Primary & Low-quality Effluent Treatment

TrojanUV systems are capable of treating effluent with UV transmittance as low as 15%

About Primary Wastewater & Combined Sewer Overflow Treatment

  • Some wastewater treatment plants only utilize a primary treatment process and do not use any form of secondary or tertiary steps

  • Primary treatment usually consists of bar screens, grit chambers, and sedimentation tanks – the goal of primary treatment is to remove large objects, particles, and suspended solids

  • Combined sewer systems are sewers that are designed to collect rainwater runoff and domestic wastewater in the same pipe – during periods of heavy rainfall or snowmelt, the wastewater volume in a combined sewer system can exceed the capacity of the wastewater treatment plant and overflow directly into nearby streams and rivers

  • The treatment of combined sewer overflows (CSOs) is a growing regulatory requirement in many regions

High flow rates and volumes, combined with the inherently high suspended solids concentration, variable temperature, and microorganisms seen in low quality wastewater applications requires a treatment technology with rapid oxidation and powerful microorganism-treatment capabilities.

UV & Chlorine

Traditional treatment, such as chlorine, has rapid oxidation capabilities and is relatively low cost, however, effective treatment can require a lengthy contact time which can necessitate the need for substantial footprint expansion and construction costs. In addition, the high chlorine dosages applied can potentially result in a high level chlorine residual and by-products in receiving waters. This has prompted municipalities to look for more options, notably UV.

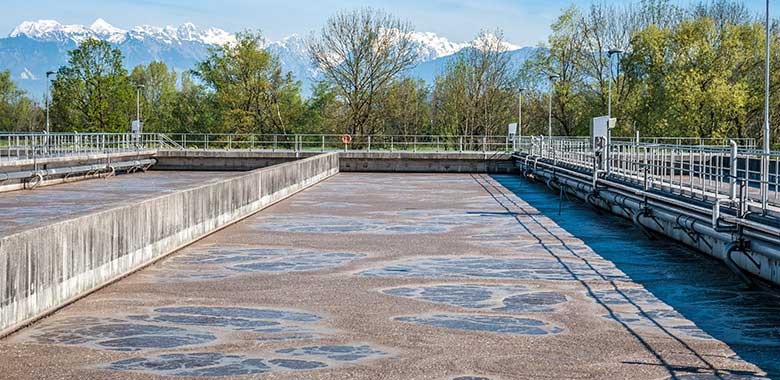

Low quality wastewater flowing through treatment process

Robust UV System Design

Low quality wastewater – such as that which has only received primary treatment – has low UV transmittance (UVT), thus the UV system design challenge is a greater one because a higher percentage of the UV light is absorbed in a shorter distance.

The key to proper UV system design is to optimize the effective water layer between the UV lamps for the transmittance of the water in consideration. In low transmittance wastewater, the effective water layers need to be smaller which can be accomplished with more powerful lamps, a narrower spacing, or with hydraulic devices to induce streamlines and direct flow toward the lamps.

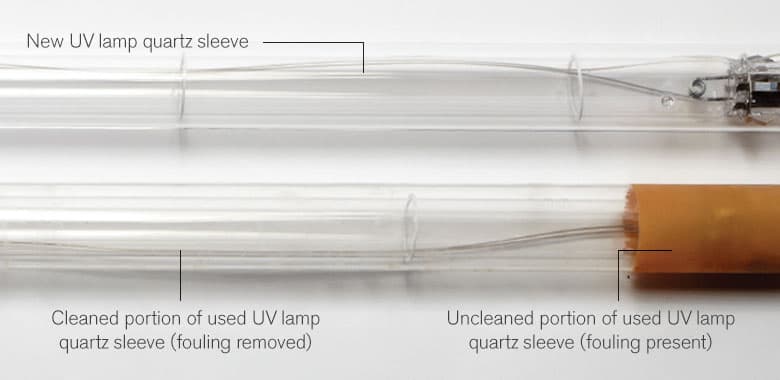

New quartz sleeve with no fouling, and used quartz sleeve that shows a portion of it clean with a mechanical/chemical sleeve cleaning system compared to a portion of it not cleaned, the uncleaned portion has fouling on it

Also, the rate and degree of fouling on the quartz sleeves can be accelerated in low UVT applications. Fouling must be removed from the quartz sleeves to maximize the UV light transfer to the water.

A dual-action sleeve cleaning system that uses automatic mechanical wiping in conjunction with a cleaning solution – such as the ActiClean® system – is critical. This advanced system operates automatically, without operator involvement, reducing maintenance and ensuring maximum UV output every day. Quartz sleeves and intensity sensors are cleaned regularly without disrupting treatment.

    UV in Action

    Treating Stormwater With UV

    Cog Moors Wastewater Treatment Works in South Wales services the areas of Barry and Penarth. Total population is approximately 240,000, and incoming flows can reach approximately five cubic metres per second. Discharge from the Cog Moors WwTW is adjacent to three bathing water beaches and due to the growing popularity of these beaches, the Environment Agency Wales introduced stringent stormwater spill limits and discharge consents.

    Officials decided to conduct an economic and environmental evaluation of adding more storage tanks vs. installing a UV system to the stormwater treatment train.

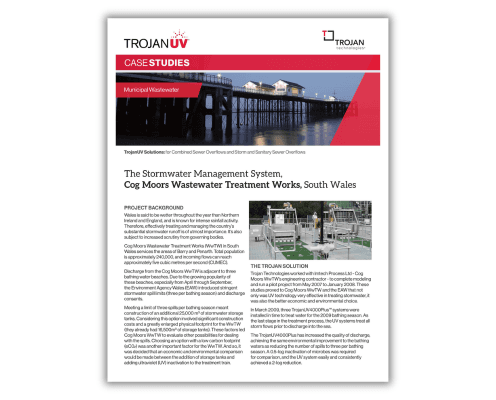

    Case study about stormwater management at a wastewater treatment plant in South Wales

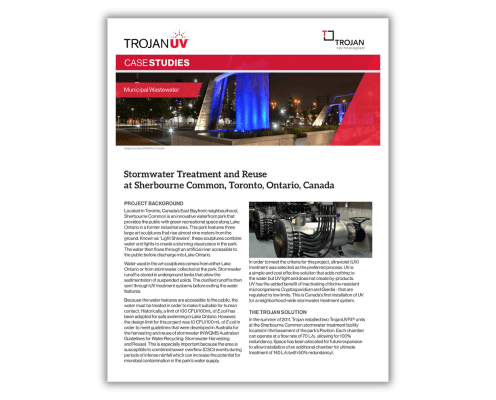

    UV Treatment for Public Water Feature in Toronto

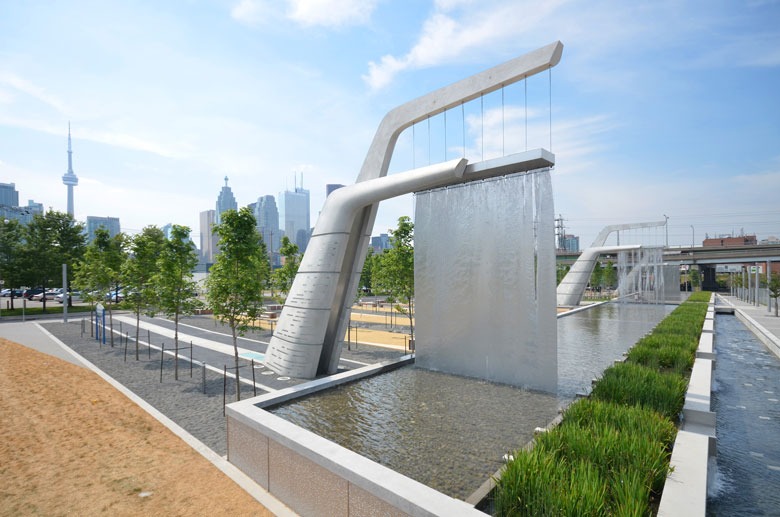

    Sherbourne Common is an innovative waterfront park that provides the public with green recreational space along Lake Ontario in a former industrial area. This park features three large art sculptures that rise almost nine meters from the ground.

    Water used in the art sculptures comes from either Lake Ontario or from stormwater collected at the park. Stormwater runoff is stored in underground tanks that allow the sedimentation of suspended solids. The clarified runoff is then sent for treatment before exiting the water features.

    Primary & Low-quality Effluent water treatment

    Systems for Primary & Low-quality Effluent Treatment

    TrojanUVSigna raised bank


    The TrojanUVSigna® incorporates innovations, including TrojanUV Solo Lamp® Technology, to reduce the total cost of ownership and drastically simplify operation and maintenance. It is the ideal solution for treatment plants in need of revolutionary UV technology.

    Learn More

    TrojanUV3000Plus module


    The TrojanUV3000Plus® is one of the reasons why UV is now a favored technology in wastewater treatment. Often touted as a flagship UV system, it has demonstrated effective and reliable performance around the world. In fact, over 2,000 municipalities rely on it to treat over 30 billion gallons of wastewater every day.

    Learn More
