TrojanUV3000Plus

Same Proven System. Exciting New Features.

The Next Generation of the TrojanUV3000Plus

The TrojanUV3000Plus® is one of the reasons why UV is now a favored technology in wastewater treatment. As our leading UV system, it has demonstrated effective and reliable performance on six continents where more than 2,000 municipalities rely on it to treat over 30 billion gallons of wastewater every day.

Since its introduction, we have continued to invest in and evolve the technology and are excited to announce a new generation of the TrojanUV3000Plus product line:

  • Built on the same infrastructure that makes it the proven system known today
  • Offers new features to simplify operation and maintenance
  • Helps plant operators with modern day treatment challenges

Here’s what’s new:

  • The new IntegraTM lamp assembly
  • Improved ActiClean® sleeve cleaning system
  • More system control options including a new TouchSmartTM Plus controller

We're Here to Help

Have questions? Call us at 1 (888) 220-6118 or complete the form below.

Key Features and Benefits

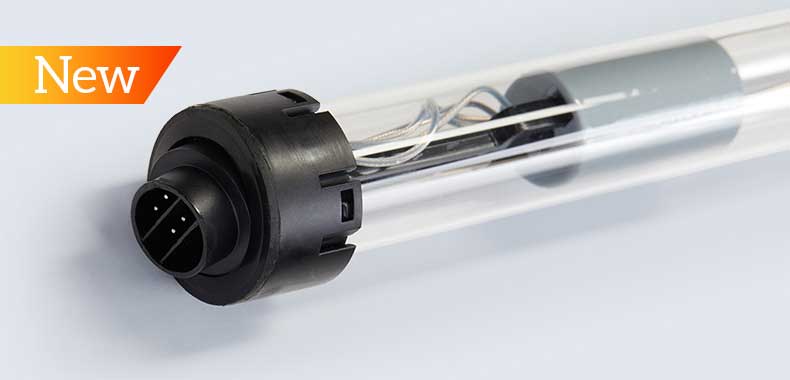

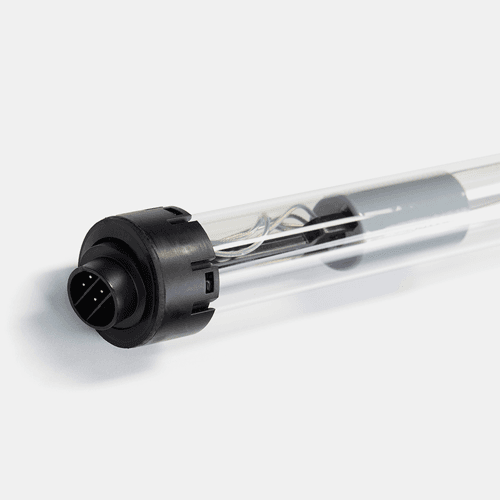

TrojanUV3000Plus Integra Lamp Assembly

Integra Lamp Assembly

The new Integra lamp assembly is designed to make lamp replacement more efficient with lamps and sleeves that are now preassembled, and factory sealed together as a single unit. O-rings and seals are permanently built-in, preventing water from getting inside the assembly. And since lamps remain sealed inside the quartz sleeve, they are better protected from potential damage during maintenance.

Automatic Sleeve Cleaning

Our unique ActiClean system removes fouling from quartz sleeves to ensure the maximum amount of UV light enters the water. ActiClean canisters that hold the cleaning gel are now bigger and more robust, with the ability to hold double the amount of gel for fewer re-fills.

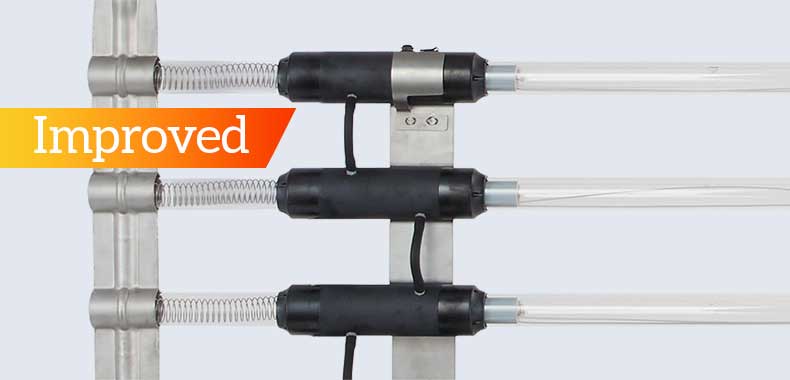

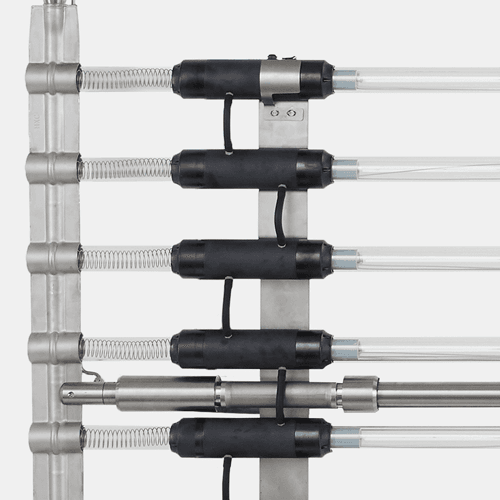

ActiClean sleeve cleaning system

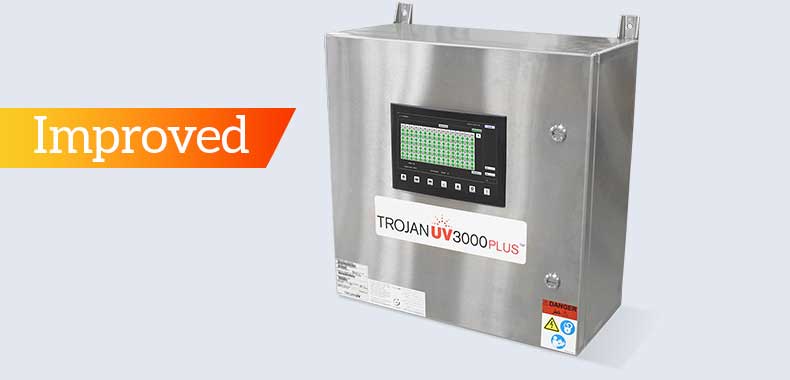

TouchSmart Plus controller

More System Control Options

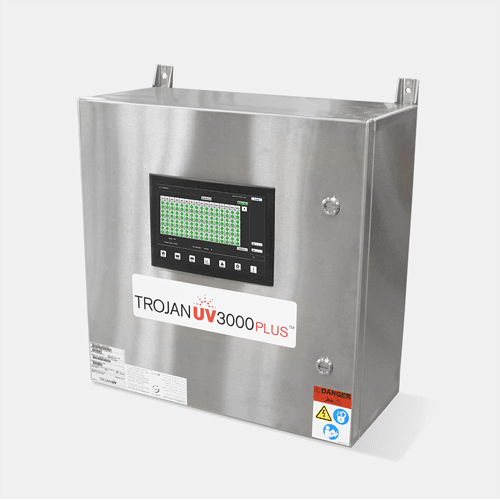

Operators now have more controller options with new programs and newly designed screens for user-friendly navigation. The new TouchSmart Plus Controller offers a full suite of features and functionality but without the price tag.

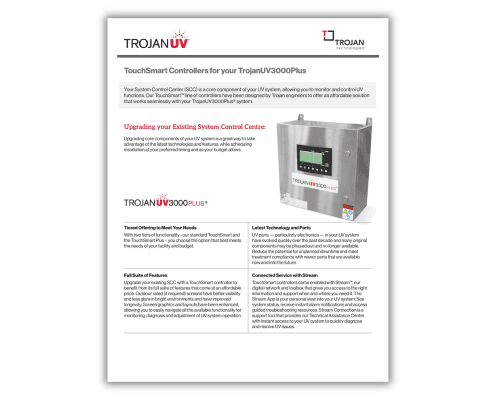

TouchSmart Brochure

Flexible Installation & Expansion

Modular, compact design allows cost-effective installation into existing effluent channels and chlorine contact chambers. When the time comes to meet new regulations and increase flow capacity, more banks may be added. What’s more – the entire system can be installed outdoors to reduce capital costs, no building, shelter or HVAC required.

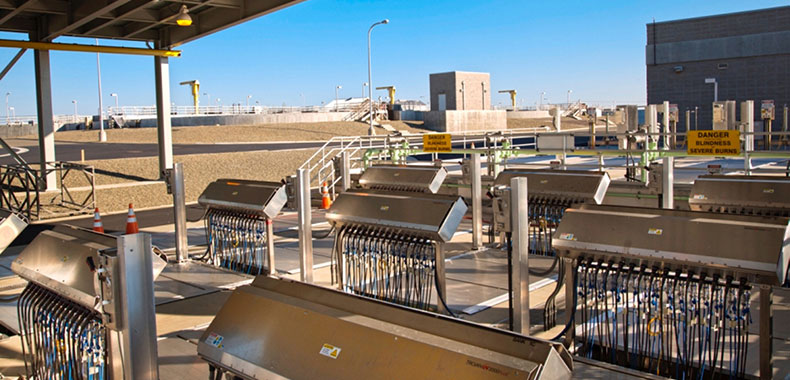

TrojanUV3000Plus installation in California

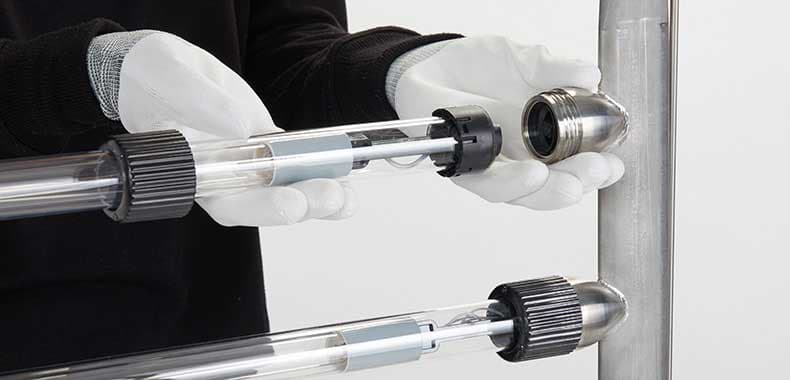

An operator replacing the Integra lamp assembly

Easy to Maintain

UV lamps can be easily and quickly replaced without tools. The preassembled Integra lamp assembly seals water off preventing leaks and premature lamp failures.  ActiClean Gel is refilled using a quick connect. Routine maintenance can be performed on one module without disrupting treatment performance of any remaining modules.

Self-contained UV Modules

Module mounted lamp drivers allow for compact installation and convection cooling. Drivers are housed right in the module eliminating the need for separate external cabinets.

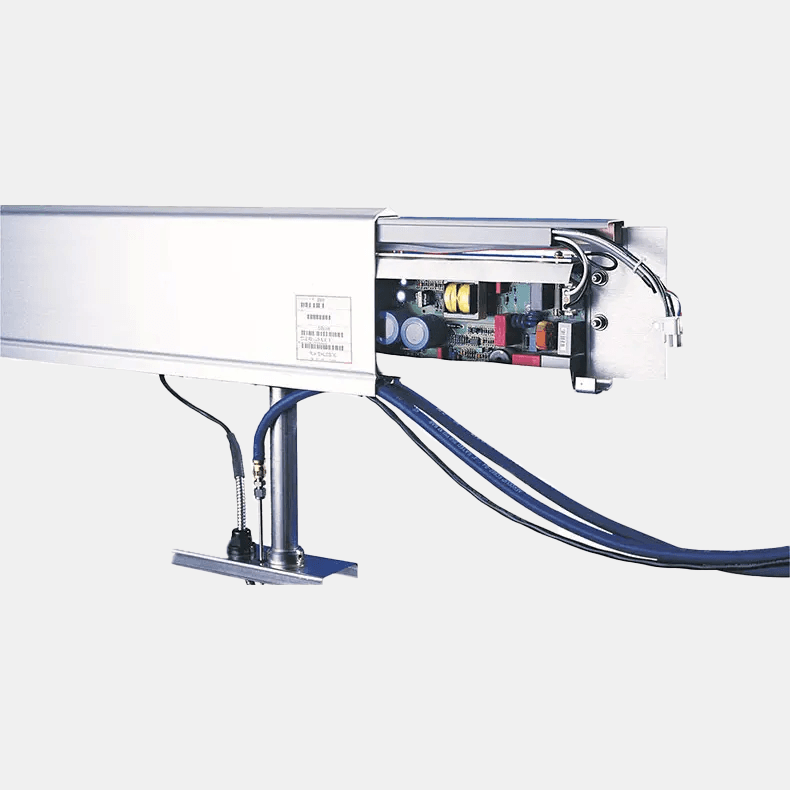

TrojanUV3000Plus Lamp Driver

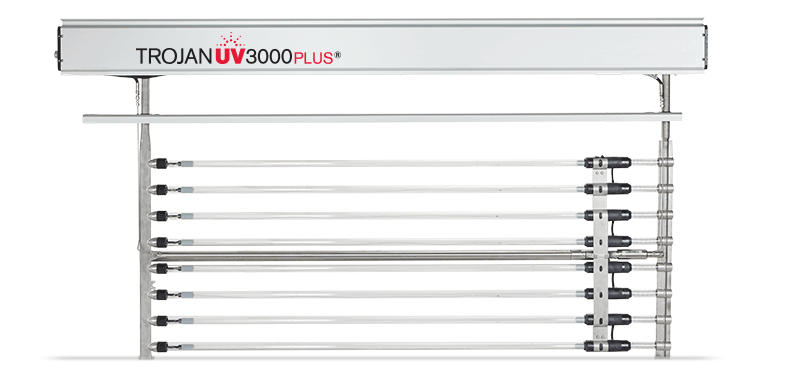

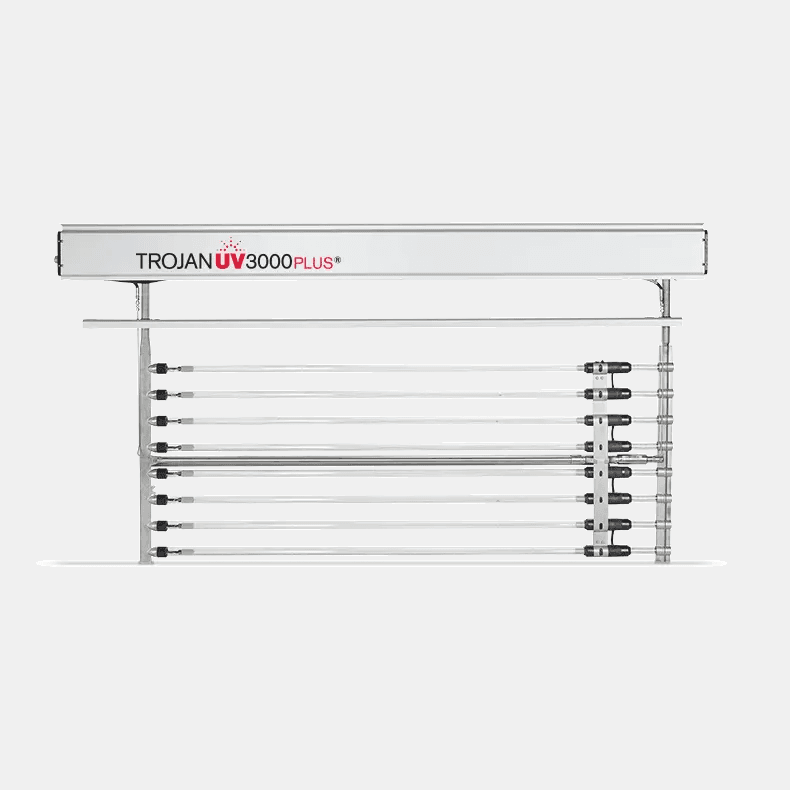

TrojanUV3000Plus module

Validation Through Microbial Testing

The TrojanUV3000Plus has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate microorganisms Escherichia coli (E. coli ) and fecal coliform.



The Challenges of Obsolescence and Aging Equipment

The latest features of the TrojanUV3000Plus were engineered to provide municipalities dealing with obsolescence and aging equipment more options and simplified ways to work through those challenges. We have helped numerous municipalities replace or upgrade their existing UV system. The first step is having a Trojan certified service expert visit to inspect the UV system and provide a detailed recommendation based on your needs and budget.

Full System Replacement

When it comes time to replace your aging UV system, we have options that can save you time, money, and effort. If your treatment needs are similar, you can keep your existing infrastructure and install the new TrojanUV3000Plus as a like-for-like replacement.

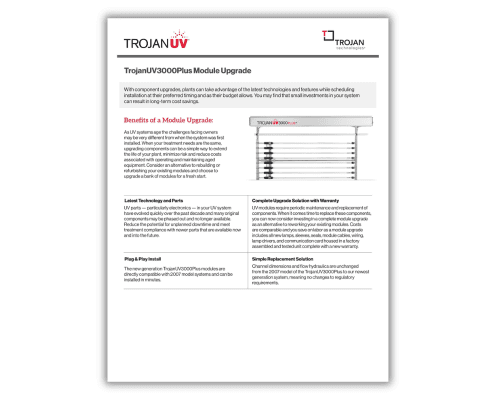

Upgrading Core Components

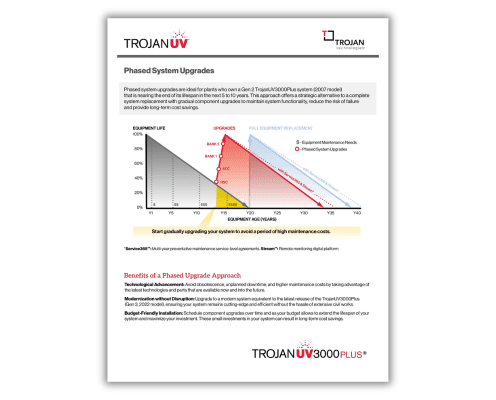

Plants may be able to avoid a full system replacement and extend the life of their existing TrojanUV3000Plus by upgrading certain components. This allows municipalities to adopt the latest features and schedule upgrades at their preferred timing and as their budget allows.

Renew Warranties

Replacing or upgrading to the latest TrojanUV3000Plus features comes with Trojan’s one-year full system warranty.



System Specifications

System Characteristics

TrojanUV3000Plus

Typical Applications

Wide range of wastewater treatment plants

Lamp Type

High-efficiency Amalgam

Lamp Driver Type

Electronic, variable output (60 to 100% power)

Input Power Per Lamp

250 Watts

Lamp Configuration

Horizontal, parallel flow

Module Configuration

4, 6 or 8 lamps per module

Level Control Device Options

ALC, fixed weir or motorized weir gate

Water Level Sensor

1 electrode low water level sensor per channel

Enclosure Ratings



Module Frame / Lamp Driver Enclosure

TYPE 6P (IP68) / TYPE 6P (IP67)

All Other Enclosures

TYPE 4X (IP56)

Lamp Driver Cooling Method

Convection; no air conditioning or forced air required

Installation Location

Indoor or outdoor

Sleeve Cleaning System



ActiClean Cleaning System

Optional Automatic Chemical/Mechanical Cleaning System

ActiClean-WW Gel

Non-corrosive

Recommended Fouling Factor

1.0

System Control Center



Controller

TouchSmart Controller, TouchSmart Plus Controller or PLC-based

Analog Inputs (Typical)

Flow (4-20 mA) and UVT (4-20 mA)

Discrete Outputs (Typical)

Bank status, common alarms and SCADA communication

Maximum Distance from UV Channel

656 ft. (200 m)

Electrical Requirements



Power Distribution Center

208V/120V, 3 phase, 3 wire + GND, 60 Hz (Max. 8 modules per PDC)

480Y/277V, 3 phase, 4 wire + GND, 60 Hz

380Y/220V, 3 phase, 4 wire + GND, 50/60 Hz

400Y/230V, 3 phase, 4 wire + GND, 50/60 Hz

415Y/240V, 3 phase, 4 wire + GND, 50/60 Hz

System Control Center (stand alone)

120V, single phase, 2 wire + GND, 60 Hz, 1.1 kVA

220/230/240V, single phase, 2 wire + GND, 50/60 Hz, 1.1kVA

Hydraulic System Center (for Sleeve Cleaning System)

G4 HSC (1-8 Banks) separate power line

380 VAC 50Hz, 3 Phase, 3 Wire + GND  (3A, 2kVA)

400 VAC 50Hz, 3 Phase, 3 Wire + GND  (3A, 2.1kVA)

415 VAC 50Hz, 3 Phase, 3 Wire + GND  (3A, 2.2kVA)

380 VAC 60Hz, 3 Phase, 3 Wire + GND  (3A, 2kVA)

400 VAC 60Hz, 3 Phase, 3 Wire + GND  (3A, 2.1kVA)

480 VAC 60Hz, 3 Phase, 3 Wire + GND  (3A, 2.5kVA)

208 VAC 60Hz, 3 Phase, 3 Wire + GND  (7A, 2.5kVA)

or

G4 HSC (1-8 Banks) powered from PDC (same as above)

Water Level Sensor

24VDC powered from PDC

Resources

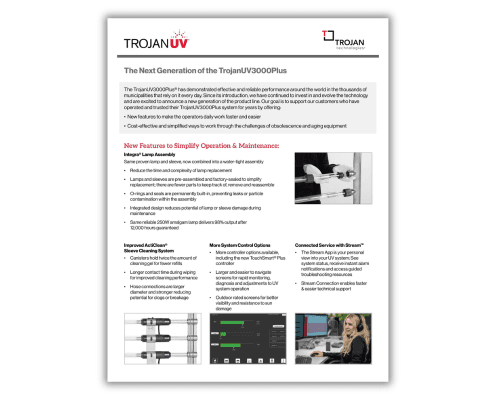

TrojanUV3000Plus Brochure

TrojanUV3000Plus Brochure

Download

Service & Parts Brochure

TrojanUV Service & Parts Brochure

Download

Spring Checkup

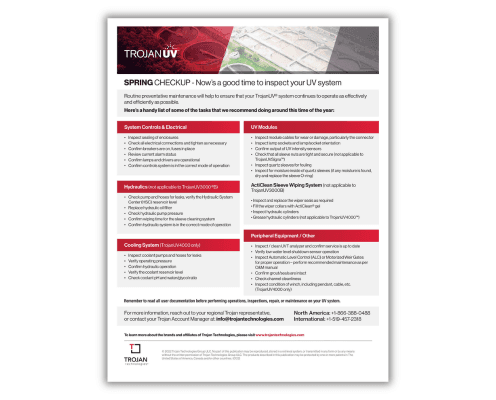

TrojanUV Spring Startup Checklist
