TrojanUV3000PTP installation at a wastewater treatment plant in Ontario, Canada

TrojanUV3000PTP

A cost-effective, off-the-shelf solution for small wastewater treatment plants

Simple and Reliable Wastewater Treatment

The TrojanUV3000®PTP (Packaged Treatment Plant) is ideally suited to treat flows up to 3 MGD (473 m3/hr). It is pre-engineered for quick, economical installation and is designed with proven components to provide a dependable UV solution for small wastewater treatment applications.


    TrojanUV3000PTP Logo

    Key Features and Benefits

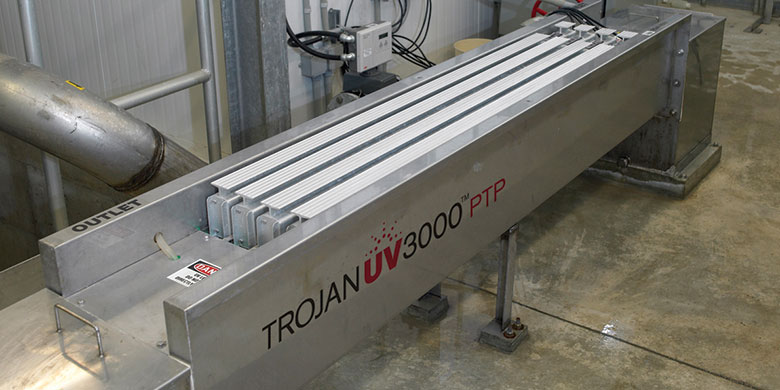

    A photo of a TrojanUV3000PTP installation at a wastewater treatment plant in Ontario, Canada

    Flexible Installation Options

    The TrojanUV3000PTP can be installed into existing chlorine contact tanks and effluent channels. It comes pre-tested, pre-assembled and pre-wired to minimize installation costs, and can also be equipped with prefabricated stainless-steel channels with built-in weirs. Channels are easily integrated with existing flanged piping using transition boxes.

    Compact Modules

    Space-saving electronic lamp drivers are housed right in the modules, not in separate external cabinets – this minimizes the footprint of the UV system and eliminates the need for air-conditioning. Lamp drivers are cooled by convection and each UV module includes a UV lamp status indicator for at-a-glance monitoring.

    A photo of an operator removing a lamp driver from a TrojanUV3000PTP module

    A photo of an operator replacing a UV lamp from a TrojanUV3000PTP module

    Operator-friendly Maintenance

    Modules are lightweight and can be individually removed for periodic sleeve cleaning and lamp change-outs. An optional mobile cleaning rack simplifies maintenance procedures.

    Proven Performance, Components and Design

    The TrojanUV3000PTP has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate microorganisms Escherichia coli (E. coli  ) and fecal coliform.

    • Is your wastewater treatment plant's flow rate 3 to 5 MGD? If so, the TrojanUV3000®B is another option you should consider. Learn more

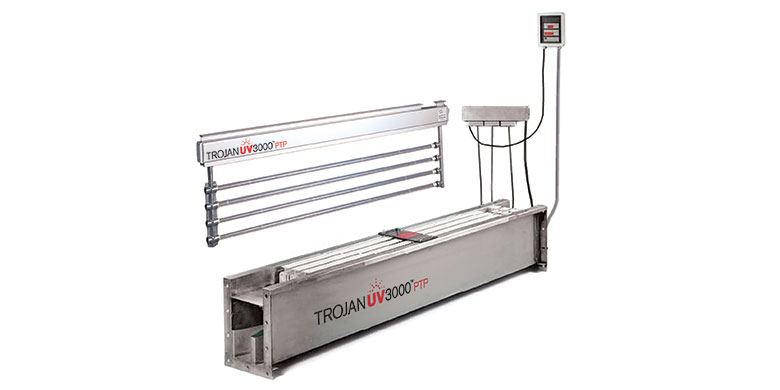

    A photo of the TrojanUV3000PTP system with a module lifted out of a stainless-steel channel

    System Specifications

    System Characteristics

    TrojanUV3000PTP

    Typical Applications

    Up to 3 MGD (473 m3/hr)

    Lamp Type

    Low-pressure

    Lamp Driver Type

    Electronic; non-variable

    Input Power Per Lamp

    45 or 87.5 Watts

    Lamp Configuration

    Horizontal, parallel to flow

    Module Configuration

    2 or 4 lamps per module

    Bank Configuration

    Up to 10 modules per bank

    Channel Configurations

    Lamp Banks in Series

    Up to 2

    Channel Options

    Stainless Steel (Trojan option) or Concrete (by others)

    Flanged Transition Connections

    Optional for stainless steel channels

    U-Turn Connector Box

    Optional for stainless steel channels

    Level Control Device Options

    Fixed weir

    Enclosure Ratings

    System Monitor/Control Center

    Fibreglass

    Lamp Driver Enclosure

    TYPE 6P (IP67)

    Lamp Driver Cooling Method

    Convection; no air conditioning or forced air required

    Installation Location

    Indoor or outdoor

    System Monitoring & Controls

    Controller

    Optional; Monitoring only

    UV Intensity Monitoring

    Optional

    Inputs Required

    None

    Local Status Indication

    Lamp Age (hours) UV Intensity (mW/cm2)

    Remote Alarms

    UV Intensity (4-20 mA)

    Location

    Indoor or outdoor

    Maximum Distance from UV Channel

    15 ft. (4.5 m)

    Electrical Requirements

    Power Distribution

    Individual GFI Receptacles

    Quantity Required

    1 receptacle per 2 modules

    Power Input

    120V, single phase

    Replacement Parts

    TrojanUV 302417-004, UV Lamp
    302417-004
    Price: Contact Us
    TrojanUV 302418-004, UV Lamp
    302418-004
    Price: Contact Us
    TrojanUV 302108-004, Quartz Sleeve
    302108-004
    Price: Contact Us
    TrojanUV 302208-004, Quartz Sleeve
    302208-004
    Price: Contact Us
    TrojanUV 302403, Lamp Driver (Ballast)
    302403
    Price: Contact Us
