A complete piloting and demonstration solution

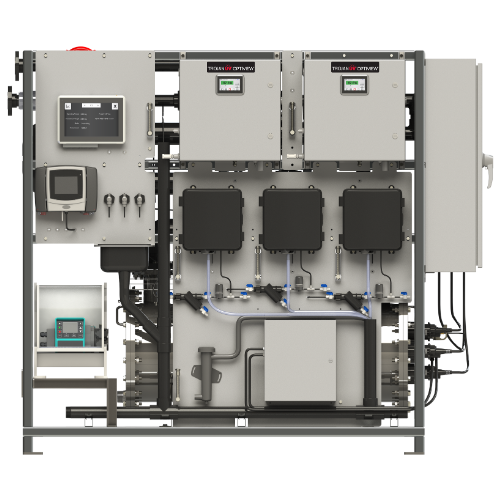

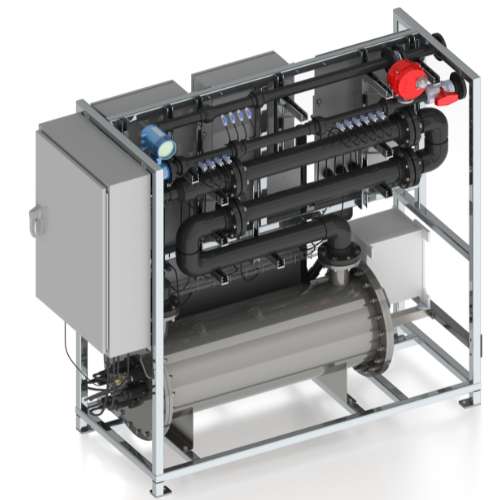

The TrojanUV AOP Demonstration System is a fully packaged UV AOP system with oxidant and instrumentation options specifically designed for demonstration, feasibility, and piloting work. Its compact and skidded design allows for easy transportation and positioning in tight spaces – fitting through standard doorways. It easily integrates into adjacent plant equipment for ultimate convenience and ensures you get results quickly.
The Trojan piloting team is available to help with every step of your piloting journey and we take pride in sharing our decades of best-in-class expertise with our customers.
.png "Image of the TrojanUVAOP Demo")
.png){kind=icon}
Get to results FASTER
Packaged UV AOP system with oxidant & instrumentation options.
.png){kind=icon}
Gain EXPERIENCE
Operate and maintain equipment designed using real-world best practices and full-scale components.
.png){kind=icon}
UNDERSTAND your water
Ensure technology performance with water quality data & expert insights.
.png){kind=icon}
Build CONFIDENCE
From outreach through planning and permitting, leverage over 20 years of Trojan expertise in advanced treatment.
Have questions? Call us at 1 (888) 220-6118 or complete the form below.
The system allows for a complete understanding of your water data so you can build confidence in your proposed treatment train and confirm the performance of UV AOP on your target contaminants.
Leverage Trojan’s expertise gained from over 20 years of experience in advanced treatment by letting us help with:
The system enables operators to gain experience by operating and maintaining equipment that was designed using real-world best practices and full-scale components.
The system uses the same full-sized components as the TrojanUVFlex®AOP:
This enables training on a system that helps you build the advanced water treatment operations staff you need for the future, and allowing that staff to gain the experience needed to qualify for their advanced water treatment operator certification.
Designed to serve as a simplified tool to support public outreach and engagement, its compact design is easy to manoeuvre and has options for fully customizable graphics that are ready to show from any angle. Accelerate your plan for public demonstration with equipment designed with the public in mind.
| System Characteristics | |
| Lamp Type | TrojanUV Solo Lamp - Low Pressure High Output |
| Lamp Power | 500 Watts |
| Dimming | 150W to 500W per lamp: 30-100% BPL in 0.5% increments |
| Lamp Driver | Electronic, variable power (30% to 100%) |
| Chamber Material | 2205 duplex stainless steel |
| Dimensions | 34.5 (W) x 78.5" (H) x 93" (L) (not including AC) |
| Weights | 2300 lbs dry |
| Installation Environment | 1-50 deg C indoors or outdoors (Air Conditioner required for ambient temps above 30 deg C. System should not be installed in the path of direct sunlight.) |
| Power Requirements | 208Vac 34A or 240Vac (Split-Phase) 30A, 8.2kVA 60Hz |
| Flange Size | 2" ANSI-DIN flange |
| Available Oxidants | Hydrogen Peroxide (H2O2) and Sodium Hypochlorite (NaOCl) |
| Sleeve Cleaning | Mechanical wiping (Optional) |
| UVT Range | 80-98% |
| Flow Range | 10 to 50 gpm |
| Opertating Pressure | 60psi Max, -5psi min |
| TrojanUV Intelligence Suite | Built-in remote monitoring capability with Stream™ |
