TrojanUVSwift

Reliable & robust drinking water UV disinfection

Peace of Mind

The TrojanUVSwift® is a testament to our commitment to providing water confidence. It has been validated through regulatory-endorsed microbial testing. Through this testing, performance data has been generated for UV dose delivery to disinfect pathogens Cryptosporidium, Giardia, and Adenovirus.

Applications

TrojanUVSwift Logo

Key Features and Benefits

A TrojanUVSwift installation at a drinking water plant in British Columbia

Compact Footprint

Hydraulically efficient and compact design minimizes head loss and maximizes dose delivery. It’s engineered to fit into restrictive pipe galleries and can be installed vertically or horizontally, even immediately after a 90˚ elbow.

Automatic, Dual-action Lamp Sleeve Cleaning

The optional dual-action ActiClean® sleeve cleaning system uses a combination of mechanical wiping and an NSF 60-certified gel to provide unparalleled sleeve cleaning. Quartz sleeves and intensity sensors are cleaned automatically, without disrupting disinfection.

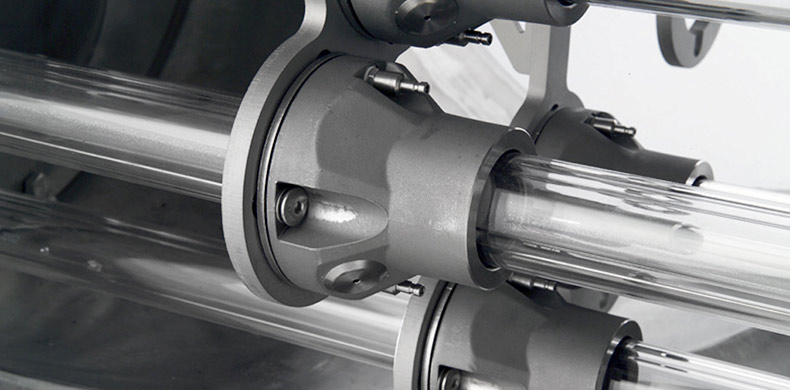

ActiClean sleeve cleaning system

Operator replacing a lamp in a TrojanUVSwift

Simplified Maintenance

The UV chamber is fully serviceable from one side – allowing the system to be installed tight to walls, other equipment or piping. Routine maintenance procedures, including lamp change-outs and sensor calibration checks, are simple and require minimal time.

At-a-glance Monitoring

This PLC-based system controls all UV functions and dose pacing to minimize energy use while maintaining required dose. The controller communicates with plant SCADA systems for centralized monitoring of UV performance, lamp status, power levels, hours of operation and alarm status.

Operator looking at TrojanUVSwift control panel

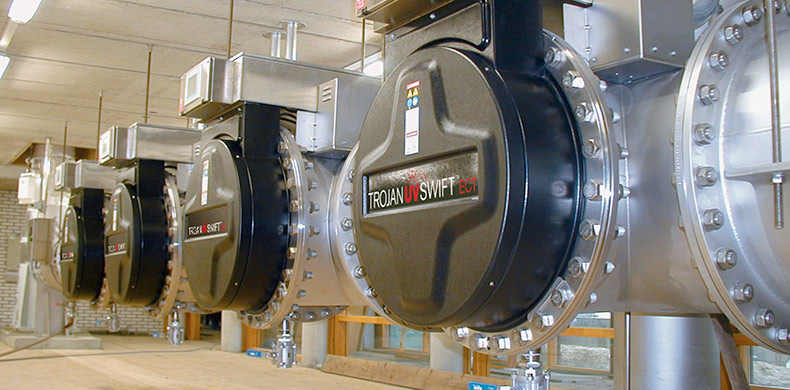

TrojanUVSwiftECT installation in Andijk the Netherlands

Upgradeable for Taste & Odor Treatment

Chambers can be configured for future expansion to cost-effectively meet increased capacity, system redundancy, or taste & odor treatment. The upgraded taste & odor system, known as the TrojanUVSwift®ECT, provides year-round disinfection and simultaneous treatment for seasonal taste & odor events. It’s an ideal, cost-effective alternative to powdered activated carbon, granular activated carbon or ozone.

Learn More

Customer Stories

White Tanks Regional Water Treatment Facility case study

Utilizing UV to Treat Cryptosporidium

Using surface water for a new water supply required that the White Tanks Regional Water Treatment Facility comply with the United States Environmental Protection Agency’s Long Term 2 Enhanced Surface Water Treatment Rule (LT2 Rule).

Learn More

Tianjin case study

UV Shining Bright in China

Favorable reviews of UV technology in wastewater applications influenced the Tianjin Economic Development Area (TEDA) Water Supply General Company to investigate the potential of using UV for drinking water applications at one of its Tianjin water treatment plants. They ultimately chose the TrojanUVSwift, and upon commissioning it was touted as the first municipal drinking water UV disinfection system in China.

Learn More

System Specifications

System

TrojanUVSwift 12

TrojanUVSwift 24

TrojanUVSwift 30

Max Flow Rate

6 MGD (950 m3/h)

25 MGD (3950 m3/h)

40 MGD (6300 m3/h)

UV Transmittance at 254nm/cm-1

70 – 98%

Number of Lamps

up to 4

up to 8

up to 16

Total Lamp Power

1.8 – 12 kW

5.7 – 75 kW

14 – 200 kW

Max System Pressure

150 PSI (10 bar)

Dual-Action On-Line Sleeve Cleaning System

Optional

Max Ambient Operating Temperature

40°C

Max Water Temperature

30°C

Chamber

Material

316L SS

Flange Types

ANSI 12" 150 lb

ANSI 24" 150 lb

AWWA 30" Class B

AWWA 12" Class D

AWWA 24" Class D

AWWA 30" Class D

DIN 2576 300 mm PN10

BS4504 600 mm PN16

DIN 800 mm PN6



BS10 TABLE E 24"

DIN 800 mm PN10

Drain and Vent Ports - Standard

1-1/2" Vent

1-1/2" Drain and Vent

2" Drain, 1-1/2" Vent

Drain and Vent Ports - Optional

3/4" NPT Adapter or Vent

3/4" NPT Adapter

NSF/ANSI/CAN 60, 61/372

Yes

Control Power Panel

Material

Painted Mild Steel

Environmental Rating

Type 12 (IP54)

Separation Distance (Chamber to Control Power Panel)

Up to 60' (18.5 m)

Up to 72' (22 m)

Power Input Options

480V, 3 Phase, 4 Wire + GND, 60Hz

480V, 3 Phase, 3 Wire + GND, 60Hz

380 – 415V, 3 Phase, 4 Wire + GND, 50Hz

600V, 3 Phase, 3 Wire + GND, 60Hz (Step Down Transformer required)

240V, 1 Phase, 3 Wire + GND, 60Hz



240V, 3 Phase, 3 Wire + GND, 60Hz



UL & CE Certfication

Yes

Ethernet Network Interface

Yes

Operational Data Trending

Yes

Standard Hardwired Outputs - System On/Off Status

Yes

Standard Hardwired Outputs - UV Dose

Yes

Standard Hardwired Outputs - Alarm Status

Yes

Remote Monitoring Modem

Yes

UPS

Optional

Inlet/Outlet Valve Control

Optional
