Up close view of TrojanUVFlex system


The latest in drinking water UV disinfection

Compact, Eco-efficient UV Disinfection for Drinking Water

The TrojanUVFlex® is designed with features to make installation and operation simpler, faster and more cost-effective than ever before. Built on the proven TrojanUV Solo Lamp® Technology platform, TrojanUVFlex allows for energy-efficient high-intensity delivery of UV light in an extremely compact footprint.


TrojanUVFlex Logo

Key Features and Benefits

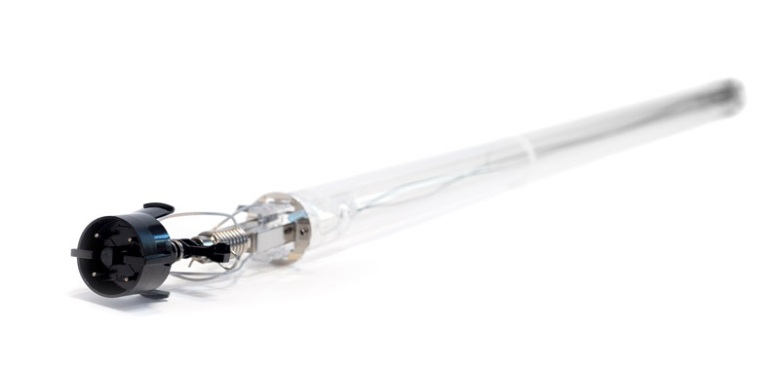

TrojanUV Solo Lamp

Cost-saving Cross-flow Lamp Orientation

TrojanUV Solo Lamps are arranged in array’s perpendicular to flow. This cross-flow orientation reduces operating costs by allowing independently operated sections of lamps to be turned on/off in response to changing treatment conditions and ensures water continues to be treated by downstream lamps in the event an upstream lamp needs to be replaced.

Modular Chamber With Flexible Installation Options

Chambers can be manufactured with additional banks to accommodate future treatment capacity, ensuring the system meets your current requirements while also planning for future needs. The option to install chambers vertically or horizontally makes integration into existing piping straightforward and allows service access from any direction.

TrojanUVFlex 200 Series chamber

TrojanUVFlex 100 Series Chamber

Advanced Validation

The TrojanUVFlex drinking water system has been validated through regulatory-endorsed microbial testing. Through this testing, performance data has been generated for UV dose delivery to disinfect pathogens CryptosporidiumGiardia, and Adenovirus.

User-friendly Experience

The TrojanUVFlex has been designed with features to make the operator’s daily work simpler and faster. Lamps, connections, sensors and quartz sleeves are all accessed from outside the chamber.  Integrated chamber hatches allow for easy internal access for inspection or maintenance. A smart, easy-to-use control system automatically optimizes energy use while ensuring UV dose and treatment objectives are being met.

TrojanUVFlex lamp replacement

Customer Stories

Go Underground With the TrojanUVFlex

Follow the journey of the TrojanUVFlex into the underground drinking water treatment plant in Lichtenberg Berlin, Germany. It was the only UV system that could fit through the space available, avoiding costly, disruptive and time-consuming construction.

System Specifications

System Characteristics

TrojanUVFlex 200 Series

TrojanUVFlex 100 Series

Lamp Type

TrojanUV Solo Lamp (low-pressure high-output)

Lamp Power

1000 Watts

500 Watts

Lamp Driver

Electronic, variable power (30% to 100%)

Chamber Material

2205 duplex stainless steel

Flange Size

48 inch AWWA C207, DN1200

36 inch AWWA C207, DN900

Pressure Rating

Maximum Pressure 87 psi (6 bar)

Maximum Pressure 125 psi (8.6 bar)

Sleeve Cleaning

Mechanical cleaning (Optional)

Network Connection

AB Ethernet I/P, ProfiNet, Profibus, Modbus TCP/IP, Modbus RTU RS485

Panel Material

Painted mild steel, 304 stainless steel, 316 stainless steel



Related Resources

TrojanUVFlex for Drinking Water Brochure

TrojanUVFlex (Drinking Water) Brochure

Learn More

Replacement Parts

TrojanUV 822518, Quartz Sleeve Kit
Price: Contact Us
TrojanUV 908081-007 Lamp
Price: Contact Us
Trojan  916841, TrojanUV Lamp Driver
Price: Contact Us
