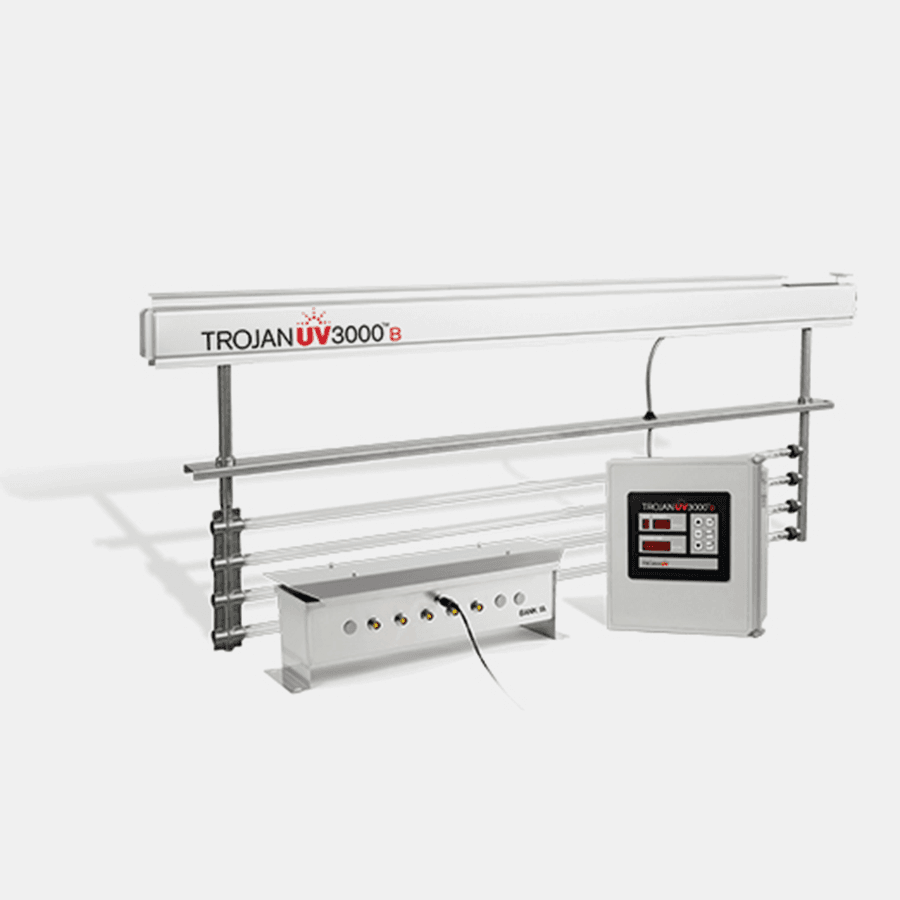

Simple and Reliable Wastewater Treatment
The TrojanUV3000® B is a simple, yet robust system designed for small wastewater treatment plants that are looking to treat 1 – 5 MGD (158 – 789 m3/hr). The system is straightforward to use and requires minimal operator involvement thanks to its modular design and proven components.
Advanced, Self-Contained UV Modules

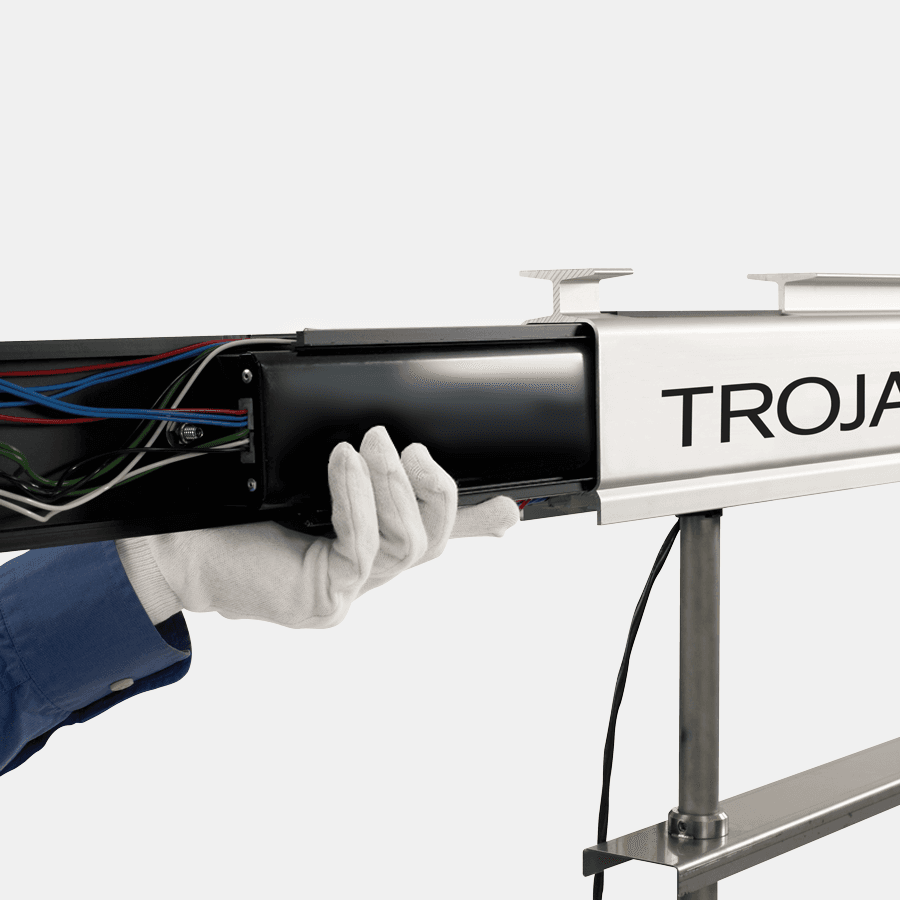

Space-saving electronic lamp drivers are housed right in the modules – not in separate external cabinets – and are cooled by convection. All module wiring is pre-installed, factory-tested, and enclosed inside a waterproof frame.
Operator-friendly Design

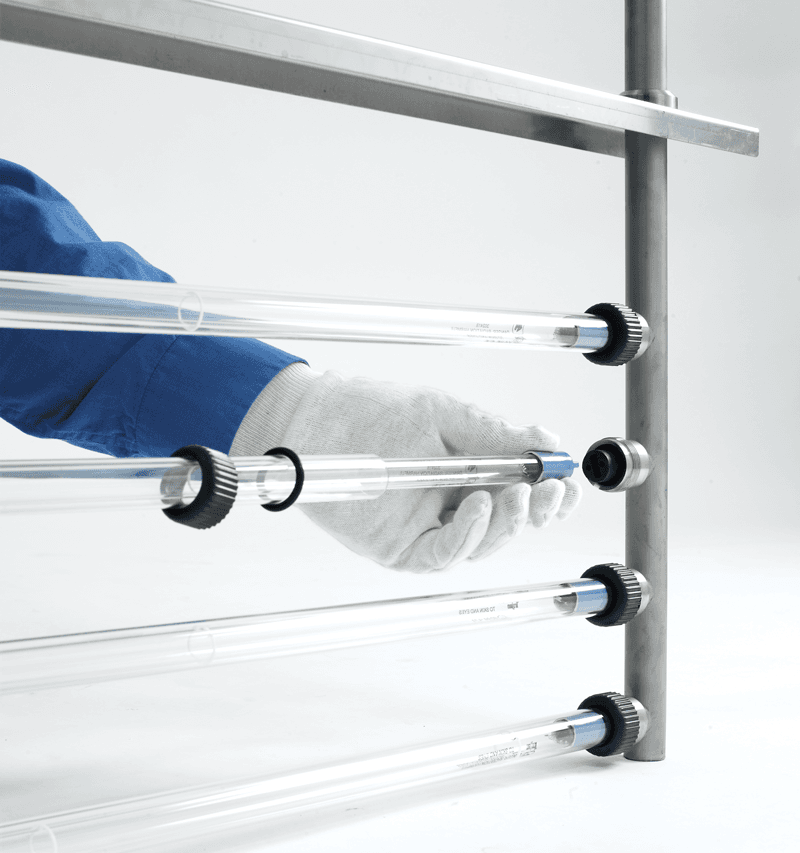

Modules are lightweight and electrically separate, allowing a single module to be removed without disrupting flow or taking the system offline. Lamps are guaranteed for 12,000 hours of operation and can be replaced without tools. A UV lamp status indicator provides at-a-glance monitoring and helps determine when replacement is needed.
Proven Performance
The TrojanUV3000B has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate microorganisms Escherichia coli (E. coli ) and fecal coliform.

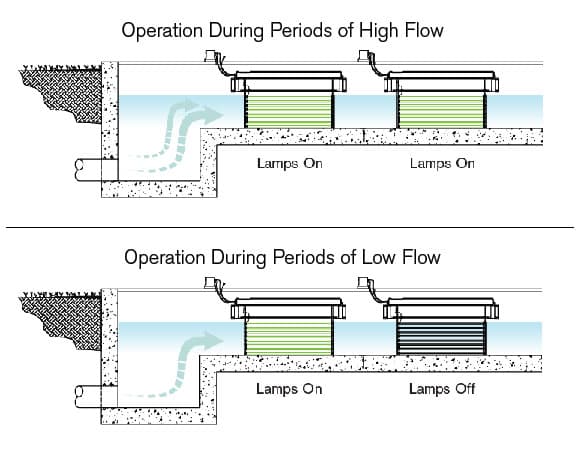

Flow Pacing
The System Control Center (SCC) provides digital display of bank status, lamp hours, and UV intensity. Individual banks can be turned on and off automatically in response to variations in flow rate (based on a flow meter signal). This flow pacing maximizes operating efficiency by matching UV output to treatment requirements and reducing electrical consumption during periods of low flow.
Is your wastewater treatment plant's flow rate 3 MGD or under?
If so, the TrojanUV3000® PTP is another option you should consider.
System Specifications
System Characteristics | TrojanUV3000B |
|---|---|
Typical Applications | 1 – 5 MGD (158 – 789 m3/hr) |
Lamp Type | Low-pressure |
Lamp Driver Type | Electronic; non-variable |
Input Power Per Lamp |
