ActiClean® is a patented dual-action cleaning system engineered to maintain peak performance of multiple Trojan UV disinfection systems. By combining mechanical wiping with a specialized gel cleaning agent, it prevents quartz sleeve fouling. Fouling occurs when organic and inorganic deposits accumulate on sleeves, absorbing UV light and reducing UV transmission into the water. ActiClean® mitigates this degradation, delivering reliable UV system performance, increasing energy efficiency, and regulatory compliance.
The ActiClean™ Cleaning System uses ActiClean™ Gel, a proprietary, food-grade cleaning agent developed by Trojan and NSF 60 certified for use in drinking water.
The ActiClean™ Cleaning System cleans sleeves through:
Mechanical action: Wiper canister seals scrape the sleeve surface
Chemical action: ActiClean™ Gel within the canisters dissolves deposits

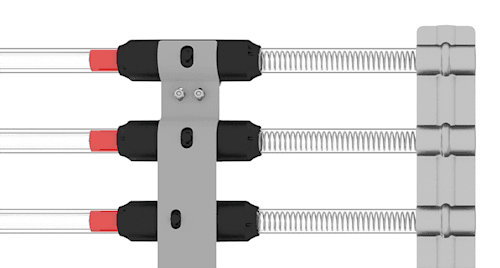

Stainless steel wiper canisters surround quartz sleeves and contain ActiClean™ Gel
Submersible wiper drive moves the carriage along the sleeve smoothly and automatically
Lamps remain on and in-channel during cleaning
Removes both organic and inorganic deposits for up to 50% more effective cleaning
Maintains ≥95% transmittance through sleeves in low-quality water
Ensures consistent UV output
Eliminates manual cleaning of sleeves and sensors
Validated by third-party testing
Cleans sleeves in place, no shutdown or lamp removal
Designed for Trojan systems, fully compatible with wiper components
Effective under most conditions
Lubricants protect wiper seals
Non-corrosive, non-toxic, biodegradable
Reduces fouling, lowers energy, labor, and capital costs
Hands-off operation for up to 6 months
Double gel volume for longer intervals between refills
Better tubing and fittings for fewer clogs and breaks
NSF 60 food-grade gel for all water types
Simple refills and ~2-year service cycle
Up to 30% annual savings
ActiClean® is deployed globally across hundreds of installations. It is ideal for wastewater and water reuse facilities facing high fouling, demanding uptime, or limited maintenance windows—especially where manual cleaning is costly or impractical.
TrojanUV3000Plus
A preferred UV treatment system, delivering proven, reliable performance worldwide across primary and tertiary wastewater, and reuse applications.
TrojanUVSwift
An easy-to-maintain UV drinking water treatment system which can be configured for future expansion to meet increased capacity, or taste & odor treatment.
Simply fill out this form and let us know what you're looking for.
We will get back to you with a no obligation quote that includes suggested quantities, warranty information and pricing.
The ActiClean™ Cleaning System is managed via the Control Power Panel (CPP) and Hydraulic System Center (HSC) interface, allowing operators to schedule cleaning intervals or initiate immediate cleaning cycles. The cleaning system is driven by an internal drive cylinder with an externally mounted hydraulic pump. The drive cylinder is hermetically sealed to prevent any possibility of fluid loss. Cleaning frequency depends on fouling levels and wiping cycles.
Periodic inspection ensures maximum efficiency and long-term operation. Gel refill and wiper seal service typically occur every ~2 years.
